Wildcat T1 Kid’s Handcycle
CURRENT DELIVERY TIME IS 9-12 WEEKS AFTER RECEIPT OF DEPOSIT OR PURCHASE ORDER.
Please fill out an order form and we will provide you with a complete estimate.
Hover on the numbered bullets to learn more.
We are taking order for the kid’s Wildcat handcycle. If you are interested in a Wildcat Off-Road kids handcycle, please fill out an order form and we will provide you with an estimate. If you have any questions please email us at reactiveadaptations@gmail.com. Thank you!
1
2
3
4
5
6
7
8
9
10
1
Seat back frame has 6″ of fore/aft adjustment
2
Easy to adjust seat back angle
3
6″ of vertical crankset adjustment
4
Crankset ams come with 155mm and 127mm handle adjustment locations
5
1″ foam padding with washable covers
6
Aluminum bumper
7
Shimano Nexus 8 (8speed) internal hub with grip shifter with oversized custom ring gear for steep hill climbing
8
20″ wheels with Kenda Slant Six 2.6″ knobby tires
9
Adjustable nylon leg straps with adjustable leg tray tubing
10
Custom colors available

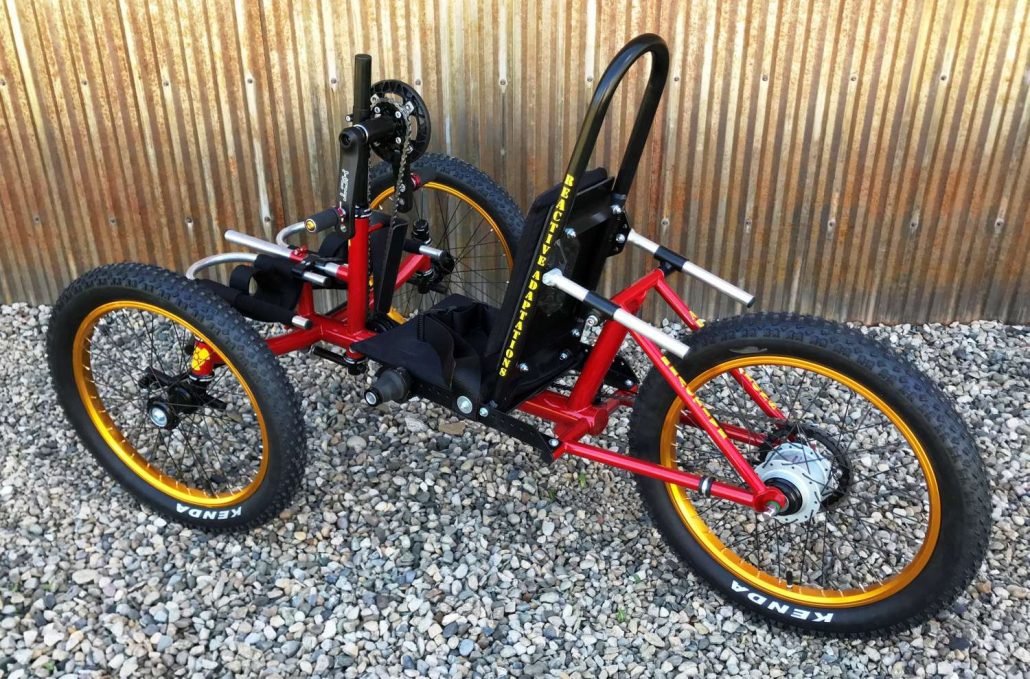

The Wildcat T1 (1st generation Tadpole) is a kid specific handcycle built to tackle the outdoor trails.
Price starts at: $7500.00 USD
…not including shipping, handling, or any applicable taxes.
Wildcat T1 Kid’s Offroad Handcycle – Tech Specs
Measurements:
- Wheelbase = approximately 39″
- Center to center of front wheels = 30.5″
- Total length = approximately 60″ (dimension from front of front tire to rear of rear)
- Weight: Approximately XXlbs depending on build
Frame Features:
- Lightweight 4130 Chromoly construction
- Custom lightweight chromoly steel frame
- Aluminum seatback/rollbar frame
- Aluminum adjustable seat brackets
Steering Features (Duel Steering):
- Main steering controlled using the crankset
- Secondary steering controlled via direct handlebar connected to kingpin axles
Adjustments:
- Seatback frame can be a adjusted fore/aft 6″
- Crankset can be adjusted vertically 6″.
- Foot slings can be adjusted approximately 10″ fore/aft
Drivetrain Features:
- Main crankset includes a 22 tooth ring gear.
- Shimano Alfine 8 speed hub with custom 32 tooth ring gear for extra low (climbing) gearing
Brakes:
- Front braking is controlled with a TRP E745 twin hydraulic brakes with left hand lever and 180mm front disc rotors.
- Rear braking is controlled with a TRP E740 hydraulic brakes with right hand lever and 160mm disc rotor.
Seating Features:
- Seat pan is 12″ wide and comes with a 1″ foam cushion with washable cover.
- Seat back frame adjusts 6″ for/aft and can be rotationally adjusted.
Wildcat T1 Handcycle – Details
| Frame Material | Lightweight 4130 Chromoly | |
| Sizes | One size fits all | |
| Main Crankset | Standard square taper with 152mm crankarms | |
| Crank handles | Custom horizontal handles | |
| Hubs | Shimano Nexus 8 speed internal rear hub
Origin 8 20mm thru-axle front hubs – disc brake compatible |
|
| Rims | SE Rims | |
| Tires | Kenda Slant 6 2.6″ tires with tube | |
| Headsets | FSA Orbit MX 1-1/8″ Black threadless | |
| Shifter | Shimano Nexus grip shifter 8 located on left side of seat pan | |
| Derailleur | N/A | |
| Brakes/Rotors | TRP E745 and E740 Hydraulic disc brakes |
